Jaquar Fonte Built-In Bathtub

JBT-FONT160FX

Description

Jaquar Fonte Built-In Bathtub

The Jaquar Fonte Built-In Bathtub brings clean, uncomplicated elegance to the alcove bathroom. Its generous 1600 × 700 mm footprint provides comfortable space for full-length bathing, and its clean rectangular profile integrates seamlessly into both contemporary and traditional bathroom layouts. The Fonte is designed for straightforward built-in installation with front and side panel options for a finished, furniture-grade appearance.

Quality Construction

The bathtub shell is formed from premium PMMA acrylic — selected for its exceptional heat retention, gloss depth, and long-term resistance to scratching and chemical exposure. Beneath the shell, PU green reinforcement eliminates any flex or movement, giving the tub a reassuringly solid feel underfoot. A powder-coated MS frame provides the primary structural support, complemented by a stainless steel frame for corrosion resistance.

Installation & Accessories

The Fonte accepts dedicated front panel (JWA-WHT-FONT160FPX) and side panel (JWA-WHT-FONT160SPX) for a clean finished look. A drain pipe with overflow and filler (JWA-CHR-132201) or drain pipe with overflow (JWA-CHR-DRNPIPE70) complete the plumbing. The Base Europa Kit (IWA-CHR-ACC00510X) is mandatory for installation and must be ordered separately. Accessories shown in product images are not included. Five-year manufacturer's guarantee.

Specifications

  • Product Code: JBT-WHT-FONT160FX
  • Range: Fonte — Built-In Bathtub

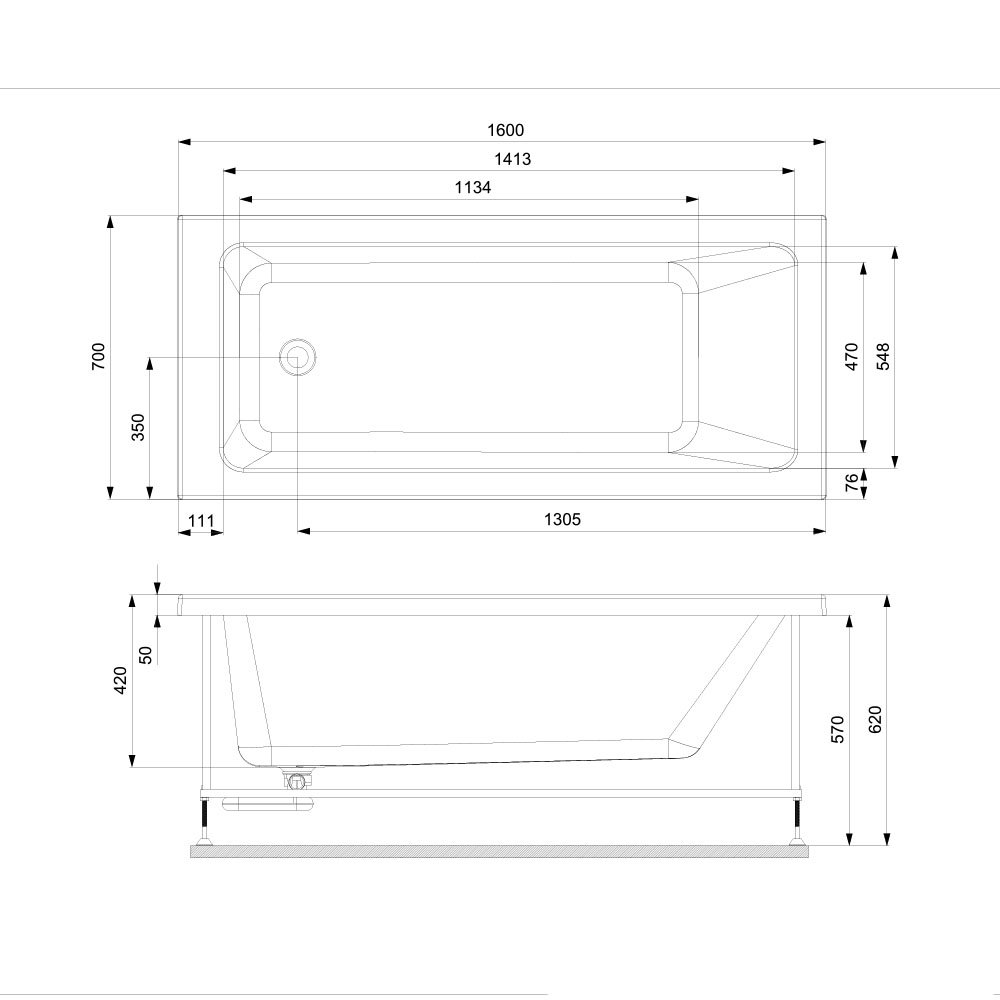

  • Size: 1600 × 700 × 420 mm
  • Installation Type: Built-In (Alcove / Recess)
  • Shell Material: PMMA Acrylic Sheet
  • Reinforcement: PU Green Reinforcement
  • Primary Frame: Powder-Coated MS Frame
  • Secondary Frame: Stainless Steel
  • Front Panel: JWA-WHT-FONT160FPX (suitable for 160 × 70 cm Fonte)
  • Side Panel: JWA-WHT-FONT160SPX (suitable for 160 × 70 cm Fonte)
  • Drain Pipe Option 1: JWA-CHR-DRNPIPE70 (with overflow)
  • Drain Pipe Option 2: JWA-CHR-132201 (drain pipe with overflow & filler)
  • Mandatory Install Kit: IWA-CHR-ACC00510X — Base Europa Kit
  • Colour: White
  • Note: Drain pipe and Europa Kit are mandatory for installation — order separately
  • Guarantee: Five-year manufacturer’s guarantee

Technologies & Features

PMMA Acrylic Shell: Polymethyl methacrylate (PMMA) is the premium grade of acrylic used in luxury bathtubs worldwide. It retains bath water heat up to three times longer than steel alternatives, resists surface scratches and discolouration, and maintains its high-gloss white finish for decades of use.

PU Green Reinforcement: Applied directly beneath the acrylic shell, polyurethane foam reinforcement prevents any flex or hollow feeling when standing or sitting in the tub — an essential quality indicator in premium bathtubs.

Powder-Coated MS Frame: The mild steel underframe receives a powder coat finish to resist corrosion in the wet bathroom environment, providing a stable and durable structural base for the bathtub over its full service life.

Base Europa Kit: Jaquar’s precision levelling and support system ensures the bathtub is perfectly level, fully supported across its entire base, and vibration-free in use — mandatory for all Jaquar built-in bathtub installations.
